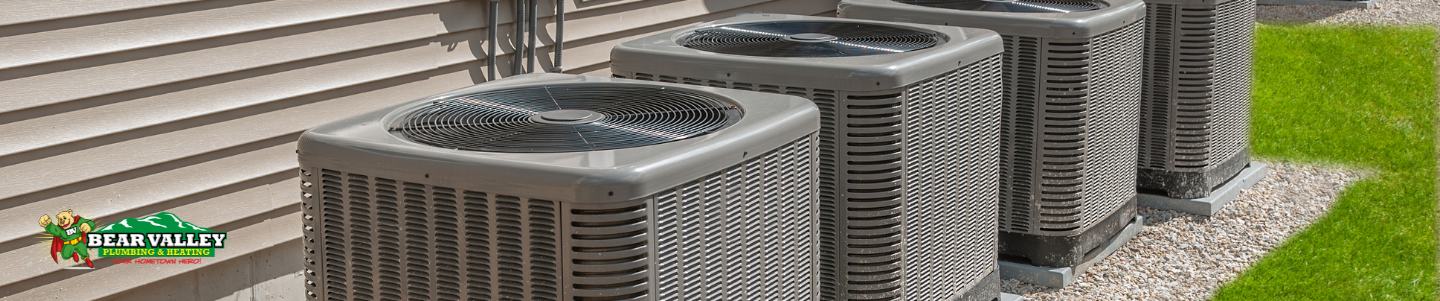

The essential components of an air conditioning system include the compressor, condenser coil, evaporator coil, expansion valve, refrigerant, thermostat, air handler, and ductwork. These are known as the main mechanical components, with the three main mechanical components being the compressor, condenser coil, and evaporator coil.
These components are typically found in a central air conditioning system, also referred to as central air, which cools and controls the climate throughout an entire home. Together, these parts work to cool, circulate, and regulate indoor air.
Bear Valley Plumbing Heating and Air Conditioning has decades of experience repairing and installing complete HVAC systems across California. Understanding each component can help homeowners and property managers make smarter repair and upgrade decisions.
What Is an Air Conditioning System?
An air conditioning system cools indoor spaces by transferring heat from inside to outside while reducing humidity. It consists of multiple mechanical and electronic components working in sync to move refrigerant through a closed-loop cycle.
To understand how an air conditioning system works, it’s important to look at the air conditioning process. The system uses a refrigerant that passes through key components such as the evaporator coil, compressor, condenser, and expansion valve.
As the refrigerant passes through the evaporator coil, it absorbs heat from the air inside the home, facilitating heat transfer. The refrigerant then moves to the condenser coil, where it releases the absorbed heat outside. This cycle of refrigerant releases and absorption continues, effectively removing heat and humidity from indoor spaces to maintain comfort.
Whether split, ductless, or packaged, all air conditioning systems share the same core functionality: absorb heat, expel heat, and distribute cool air through your home or building. Common types of cooling units include split systems, central air conditioners, and a central ac system.
Why It Helps to Understand Your AC’s Components
Knowing how your system works can:
- Help you recognize early signs of malfunction
- Improve communication with HVAC professionals
- Inform better maintenance and upgrade decisions
- Avoid unnecessary service calls
If your AC is struggling to cool evenly, making noise, or driving up energy costs, the issue likely involves one or more of its internal components.
Core Components of an Air Conditioning System
1. Compressor
Often called the heart of the AC system, the compressor pressurizes the refrigerant and pushes it through the coil system. The cooling cycle begins when the refrigerant enters the compressor as a low-pressure gas, and the compressor turns it into a high pressure gas before sending it to the condenser coil. It’s located in the outdoor unit and is vital for the entire cooling process.
2. Condenser Coil
Also part of the outdoor unit, the condenser coil (also called the condensing coil) receives high-pressure refrigerant gas from the compressor and releases heat into the outdoor air as the gas condenses into a liquid.
The outdoor fan blows air across the condensing coil to help expel hot air from the system.
3. Expansion Valve or Metering Device
This small component regulates how much liquid refrigerant flows into the evaporator coil. It creates a pressure drop in the refrigerant, enabling it to expand from a liquid to a gas and absorb heat efficiently.
4. Evaporator Coil
Housed inside or near your indoor air handler, the evaporator coil—also known as the indoor coil—is a crucial component of the system. The indoor coil absorbs heat from the air inside the indoor space by blowing warm indoor air over the coil, which removes heat from the air, cooling it down before it’s blown through your ducts or into your room.
5. Refrigerant
This chemical fluid continuously cycles between liquid and gas to absorb and release heat; during this process, the refrigerant releases heat as it transitions between gas and liquid states in different components. Common refrigerants include R-410A and R-22 (being phased out). Leaks can reduce efficiency and harm the environment.
6. Thermostat
The thermostat controls when your AC turns on or off to maintain the desired temperature and regulate indoor temperature for comfort. Smart thermostats offer better energy control and programmable settings.
7. Air Handler or Furnace Blower
This component, known as the air handler, contains a blower fan that pushes cooled air from the evaporator coil through your duct system. In some systems, the blower fan is integrated with a furnace or separate indoor unit.
8. Ductwork and Vents
Ducts transport cooled air to different parts of your home or business through air vents. Return air ducts pull warm indoor air back to the system for cooling before it is recirculated. Ductwork is typically located in attics, walls, crawlspaces, or basements. Poorly sealed or blocked ducts reduce system efficiency and increase utility costs.
Additional Parts Found in Some Systems
In addition to the main parts, there are other components that contribute to the system’s function:
- Filter Dryer – Removes moisture and contaminants from the refrigerant lines. Air filters are also used to trap dirt, dust, and other airborne particles, improving air quality.
- Capacitor – Powers motors during start-up.
- Contactor – Electrically connects or disconnects the compressor and fan.
- Drain Pan and Line – Collects and removes condensation from the evaporator coil.
- Fan Motors – Move air across coils and through the ductwork.
Air filters help remove airborne particles and other airborne particles from the air to protect the system and improve indoor air quality.
System Types and Component Variations
| System Type | Key Differences in Components |
|---|---|
| Split System | Separate indoor (evaporator) and outdoor (condenser) units. Split systems and ductless mini-splits use indoor units installed inside the home to provide targeted cooling and zoned climate control. |
| Packaged System | All components housed in one outdoor cabinet. A gas furnace and heat exchanger may be included for heating in packaged systems. |
| Ductless Mini-Split | No ductwork, uses individual indoor units (air handlers) per zone for targeted cooling and heating. |
Some systems, like heat pumps, can extract heat from outside air for heating as well as cooling. Heat pumps are an efficient alternative to traditional systems, providing both heating and cooling functions.
How Component Issues Lead to AC Failure
Understanding which parts of the ac unit break down most often helps diagnose issues faster:
- Compressor failure – No cooling at all, system won’t start
- Refrigerant leaks – Reduced cooling, higher energy use
- Dirty evaporator coils – Weak airflow, frozen coils
- Faulty blower motor – No airflow through ducts
- Thermostat issues – AC won’t respond or cycles too frequently
Preventing Repairs With Regular Maintenance
Routine inspections and servicing help protect each component. Regular maintenance also preserves indoor air quality and ensures a comfortable indoor environment. Key maintenance steps include:
- Changing air filters every 1–3 months to maintain air quality
- Cleaning evaporator and condenser coils annually
- Checking refrigerant levels and inspecting for leaks
- Testing electrical components and wiring
- Ensuring ducts are sealed and unobstructed
Investing in seasonal tune-ups improves performance, reduces breakdowns, and extends your system’s lifespan while supporting healthy indoor air quality.
Energy Efficiency and the Role of Proper Component Function
Each component of your AC system plays a role in your home’s energy efficiency. All components work together as part of the HVAC system to maximize energy efficiency, with the compressor, thermostat, and coils collaborating to maintain optimal indoor climate control. For instance, dirty coils, failing motors, or a malfunctioning thermostat can drive up electricity usage. Ensuring your components are clean, properly installed, and well-maintained directly reduces your energy bills and improves cooling consistency.
California homeowners can take advantage of rebate programs for upgrading older components, including smart thermostats and energy-efficient compressors, to meet Title 24 standards.
Longevity: How Long Each AC Component Typically Lasts
Understanding the average lifespan of each part of your air conditioning unit can help you plan for replacements before failure occurs:
| Component | Typical Lifespan |
|---|---|
| Compressor | 10–15 years |
| Condenser Coil | 10–15 years |
| Evaporator Coil | 10–15 years |
| Thermostat | 7–10 years |
| Blower Motor | 10–20 years |
| Ductwork | 20–30 years (if sealed) |
By proactively replacing aging components, you can avoid system-wide failure and reduce emergency repair costs. This also ensures your air conditioning unit continues to deliver cooler air efficiently throughout your home.
Schedule AC Service With Bear Valley
If you suspect any of your AC components are underperforming, Bear Valley’s certified HVAC technicians can inspect, test, and replace faulty parts quickly. Regular service helps maintain the quality of the indoor air and the performance of your conditioning system. Professional maintenance ensures the air inside your home remains comfortable and healthy.
Call 909-584-4376 or request service online
We offer reliable, affordable AC repair and maintenance across California to keep your home or business comfortable year-round.
Further Reading
- Understanding Your Big Bear Air Conditioner’s Basic Cycle
- 10 Air Conditioner Maintenance Tips for Homeowners in Bear Valley
- What Happens If You Don’t Service Your Air Conditioner in Big Bear?
- Top 10 Air Conditioner Coil Questions Answered by Big Bear AC Professionals
Resources
- EnergyStar – How Air Conditioners Work
- ASHRAE Residential HVAC Standards
- U.S. Department of Energy – Cooling System Basics
Frequently Asked Questions
What are the main parts of an air conditioning system?
The major components include the compressor, condenser coil, evaporator coil, expansion valve, refrigerant, thermostat, and air handler.
What does the compressor do in an AC system?
The compressor pressurizes refrigerant and circulates it between the indoor and outdoor units to remove heat.
Can I replace one AC component without replacing the whole system?
Yes, but the new component must be compatible. An HVAC technician should evaluate whether replacement or full upgrade is more cost-effective.
Why is my AC blowing warm air?
Likely causes include low refrigerant, a faulty compressor, or dirty evaporator coils.
How often should AC components be serviced?
Every spring before peak use. Coils, motors, and refrigerant lines should be inspected annually.
