That sinking feeling hits when the familiar click of your furnace isn’t followed by the comforting whoosh of ignition, especially on a chilly Big Bear night. The silence that follows is often more unsettling than the cold itself.
The good news? When your gas furnace clicks but won’t light, it’s giving you a clue. That click means the system is getting the signal to start, but something is interrupting the sequence.
This is where you start—ruling out the simple oversights before assuming the worst. Think of it as checking if a lamp is plugged in before you decide the bulb is shot. These first steps are safe for any homeowner and, more often than not, they solve the problem right then and there.
Before we jump into troubleshooting, let’s quickly run through the simple things that are easiest to check and often solve the issue in minutes.
Immediate Furnace Diagnostic Checklist
This quick checklist covers the most common user-related issues we see. Going through these first can save you a service call.
| Check Point | What to Look For | Simple Action |
|---|---|---|
| Thermostat Settings | Is it set to "HEAT"? Is the temperature set at least 5 degrees above the current room temp? | Adjust settings and wait a minute. Replace batteries if the display is blank or dim. |
| Furnace Power Switch | A switch that looks like a light switch on or near the furnace unit. | Ensure the switch is flipped to the "ON" position. It's easily knocked off by accident. |
| Circuit Breaker | Find your home's main electrical panel. | Look for a breaker labeled "Furnace" or "HVAC" and see if it's tripped. Flip it fully OFF, then back ON. |
| Emergency Shut-off | Another switch, often with a red plate, located in a hallway or near a doorway. | Make sure this switch is in the "ON" position. |
Running through these basic checks helps confirm the furnace is actually getting power and the command to turn on. If everything here looks good, the next step is to understand what's happening inside the unit.
The Normal Furnace Ignition Sequence
To figure out what’s going wrong, it helps to know what a normal startup looks like. A furnace ignition cycle is a precise, safety-checked sequence that happens every time your thermostat calls for heat.
Here’s a simplified breakdown of that process:
- The Call for Heat: Your thermostat senses the temperature drop and sends an electrical signal to the furnace's control board. This is the starting gun.
- Draft Inducer Motor Kicks On: You'll hear a small fan (the draft inducer) start up. Its job is to clear out any old gases from the combustion chamber and make sure the flue is clear for proper venting.
- Igniter Gets Hot: The control board then sends power to the ignition source. On most modern furnaces, this is a hot surface igniter that glows bright orange, getting hotter than 2,000°F. Older systems might use a spark igniter or have a standing pilot light.
- Gas Valve Opens: Once the igniter is hot enough, the gas valve opens for just a few seconds, releasing a carefully measured amount of gas to the burners.
- Ignition & Flame Check: The gas hits the glowing igniter and—whoosh—you have ignition. A critical safety device called the flame sensor must immediately detect that a stable flame is present.
- Blower Motor Engages: With the flame sensor confirming a successful ignition, the main blower fan starts up to push that wonderful warm air through the vents in your home.
If any single step in this chain fails, the entire system shuts down as a safety measure. For example, if the flame sensor doesn't "see" a flame within seconds of the gas valve opening, it tells the control board to snap the valve shut immediately. This prevents raw gas from pouring into your home. Most furnaces will attempt this cycle three times before going into a "lockout" mode.
If you find yourself in this situation, you can learn more about what to do if your furnace stops working suddenly in our detailed guide.
Key Takeaway: A clicking sound without ignition usually means the furnace is trying to work. The signal is being sent, but the sequence is failing somewhere around the igniter, gas valve, or flame sensor stage. The brain is working, but a critical part of the process isn't responding.
Common Reasons a Gas Furnace Fails to Ignite
When your furnace decides to go on strike during a Big Bear cold spell, it’s not just an inconvenience—it’s a race against the dropping temperature. You’ve already checked the power and made sure the thermostat is calling for heat, so now the investigation turns to the furnace itself. Several key components are notorious for causing ignition failures, and figuring out which one is the culprit is the first step.
Often, the problem lies with a small, inexpensive part that plays a huge safety role. These are the kinds of issues our technicians see every single day across the Big Bear Valley.
The Overly Cautious Flame Sensor
One of the most frequent reasons a furnace won’t stay lit is a dirty or faulty flame sensor. This little part is a critical safety device—just a thin metallic rod that sits right in the path of the burner flames. Its only job is to confirm that a fire has successfully started right after the gas valve opens.
If the sensor detects a flame, it gives the control board the "all clear" to keep the gas flowing. If it doesn't sense a flame within a few seconds, it immediately tells the board to shut everything down. This prevents raw, unburned gas from filling your home.
Over time, that sensor gets coated with a nearly invisible layer of carbon buildup. This grime acts like an insulator, preventing the sensor from doing its job even when a flame is present. You'll hear the furnace whoosh as it ignites for a few seconds, only to shut down right after. This cycle might repeat three times before the whole system locks itself out for safety.
Pro Tip: A classic sign of a dirty flame sensor is a furnace that lights for 3-5 seconds and then shuts off. The system is doing exactly what it's designed to do—it just can't "see" the fire through the gunk.
Igniter and Pilot Light Problems
Of course, before a flame can be sensed, it has to be created. That’s the job of the ignition system, and the specific weak point here really depends on how old your furnace is.
Hot Surface Igniters (HSI)
Most modern furnaces use a hot surface igniter. It’s a small ceramic or silicon carbide element that glows scorching hot—over 2,000°F—to light the gas. These parts are very effective but also quite fragile. After years of intense heating and cooling cycles, they can develop hairline cracks. A cracked igniter might not get hot enough to do the job, or it might fail to glow at all. A telltale sign is often a visible white spot or a clear break in the material.
Standing Pilot Lights
Older furnaces rely on a continuously burning pilot light. If this small flame goes out, there's nothing there to ignite the main burners when the thermostat calls for heat. Common reasons for this include:
- A strong draft in the furnace room that simply blows it out.
- A clogged pilot orifice, which starves the flame of fuel.
- A bad thermocouple, the safety device that shuts off the gas if the pilot flame goes out.
Whether it’s a modern igniter or an old-school pilot, if the ignition source fails, the gas has nothing to light, and the furnace simply won't run.
Restricted Gas Supply
Your furnace can’t burn fuel it doesn’t have. An interruption in the gas supply is another common reason for ignition failure. Sometimes the fix is surprisingly simple, like a gas valve that was accidentally turned off during summer maintenance or another repair.
The valve handle should be parallel to the gas pipe to be "open." If it's perpendicular, it's closed. But the problem can also be more complex, like an issue with the gas meter, a blockage in the line, or a malfunctioning internal gas valve on the furnace itself. If you've checked the valve and still suspect a gas supply problem, it's time to call a professional. Never try to service gas lines yourself.
How a Dirty Air Filter Stops Ignition
It might sound completely unrelated, but a severely clogged air filter is a frequent showstopper for ignition. Your furnace needs a steady flow of air to operate safely. When the filter is packed with dust and debris, it chokes the system, forcing it to work way too hard.
This strain causes the heat exchanger to get dangerously hot. A safety device called the limit switch detects this excessive temperature and shuts the entire system down to prevent overheating, damage, or even a fire. The furnace won't even try to ignite until it cools down, and if that filter stays clogged, the shutdown cycle will just keep repeating.
This is a big deal for the many older homes in Big Bear. In major U.S. markets, where over 50 million households rely on gas furnaces, these failures spike during cold snaps. Systems from the 1970s or 80s—much like some found in homes built around the time Bear Valley Plumbing & Heating started in 1978—can operate at just 56% to 70% efficiency. This makes them prone to issues like backdrafting that can snuff out the ignition process entirely.
Understanding how these parts work together is key. Just as important is knowing how your thermostat communicates with them. For a deeper dive, check out our guide on how to optimize your furnace thermostat settings for better efficiency and reliability.
A Practical Troubleshooting Guide for Homeowners
Alright, so you’ve already confirmed the furnace has power and the thermostat is definitely calling for heat. Now it's time to roll up your sleeves and do a little hands-on detective work. For a handy homeowner, a few quick checks can often tell you exactly why your gas furnace is refusing to light.
But before you even think about opening a panel, let's talk safety. This is non-negotiable.
Safety First. Always. Before you touch anything, you absolutely MUST cut all power to the furnace. Find the power switch—it usually looks like a regular light switch on or near the unit—and flip it off. To be extra safe, go to your home's main electrical panel and turn off the breaker for the furnace, too. Finally, shut off the gas by turning the gas valve handle so it’s perpendicular to the pipe.
Once everything is safely powered down, you can start investigating. Modern furnaces are pretty good at telling you what's wrong; you just have to know where to look.
Decoding the Furnace Error Codes
Most modern furnaces have a small LED light on the control board that blinks in a specific pattern to signal a problem. Think of it as the furnace's own Morse code for telling you what hurts.
To see it, you'll need to remove the main service panel on the furnace cabinet. Look for a little blinking light, which could be red, green, or amber. Pay close attention to the pattern—it’s not just about counting blinks. You might see a few fast flashes followed by a slow one, or maybe a specific number of blinks before a pause.
Once you've identified the pattern, look for the key. There's usually a sticker on the inside of the panel you just took off with a chart that translates these codes into plain English.
- Two Flashes: This often points to a pressure switch problem, which could be caused by something as simple as a blocked vent.
- Three Flashes: This might signal an issue with the draft inducer motor.
- Seven Flashes: This is a big one. It frequently means a flame sensor or ignition lockout problem—one of the most common reasons a furnace won't fire up.
This little error code is your treasure map, pointing you straight to the component that’s causing the headache and saving you a ton of guesswork.
Inspecting the Hot Surface Igniter
If that error code hinted at an ignition failure, the hot surface igniter (or HSI) is your prime suspect. This little part has a tough job: it has to get glowing hot to light the gas. After years of heating up and cooling down, it can get brittle and crack.
With the power completely off, find the igniter. It's a small, ceramic component, often shaped like a "D" or a spiral, mounted right by the gas burners. Get a good look at it, checking for any visible damage.
- Hairline Cracks: Even a tiny crack is enough to keep the igniter from reaching the temperature needed to light the gas.
- White or Chalky Spot: A discolored spot often marks a burnout, where the element inside has failed.
- A Clear Break: Sometimes, it's obvious—the igniter is just broken in two.
If you spot any of these signs, the igniter is done for and needs to be replaced. The part itself isn't too expensive, but it is extremely fragile. You can get a better idea of what's involved and the associated costs by learning more about how to replace a furnace ignitor.

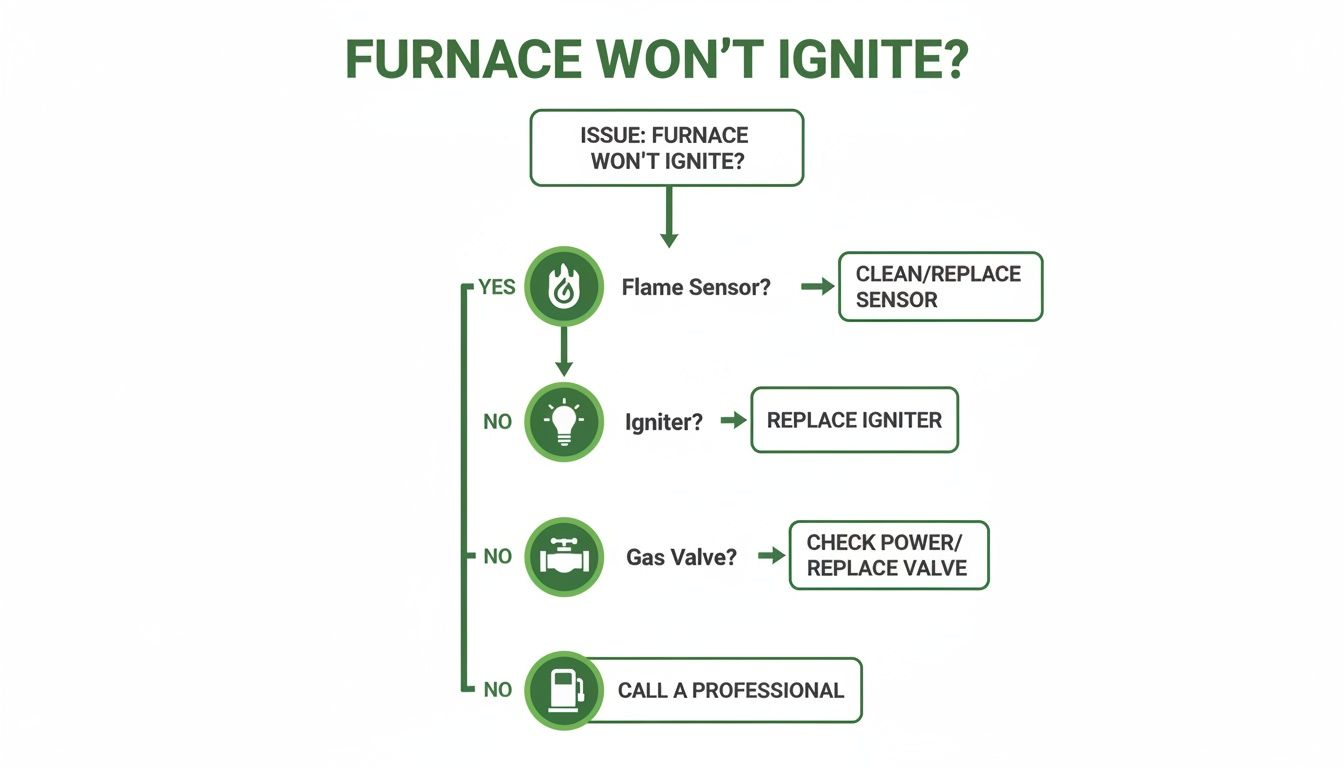

This troubleshooting flowchart can help you visualize the steps when your furnace won’t light.
It walks you through checking the most common culprits—the flame sensor, igniter, and gas valve—in a logical sequence.
Cleaning the Flame Sensor: A Common DIY Fix
Here's a classic scenario: your furnace kicks on, the flames ignite for just a few seconds, and then the whole thing shuts down. If this is happening, a dirty flame sensor is almost always the problem. The good news? This is one of the easiest fixes you can do yourself.
The flame sensor is just a thin metal rod, usually with a ceramic base, that sits directly in the path of the flame. It's typically held on by a single screw. After you've shut off the power and gas, you can usually remove it with a quarter-inch nut driver or a small wrench.
Once it's out, gently clean the metal rod with a light abrasive, like fine steel wool or a clean emery cloth. You're just trying to scrub off the carbon buildup, not scratch up the metal. Give it a final wipe with a paper towel, put it back in securely, and you're done. This simple five-minute task can often get your furnace running again and save you the cost of a service call.
Checking for a Clogged Condensate Line
If you have a high-efficiency furnace (one with an AFUE rating over 90%), it creates condensation as it runs. This water has to go somewhere, so it drains out through a plastic PVC pipe.
If that drain line gets clogged with gunk, water will back up inside the furnace. A safety switch will detect the backup and shut the system down to prevent a mess.
Find the plastic tubing leading away from your furnace and look for any visible clogs or standing water. If it looks blocked, you can often disconnect the tubing and flush it out with a mix of vinegar and water to clear the blockage. It's a key maintenance check, as issues like dirty sensors and clogged lines account for 25-35% of furnace breakdowns in the winter.
Knowing When to Call a Professional
Trying your hand at a bit of DIY troubleshooting is a great way to solve minor furnace problems. I'm all for it. But there's a huge difference between a simple fix and a genuine safety risk. Knowing when to put the tools away and pick up the phone is honestly the smartest thing any homeowner can do.
Attempting complex repairs without the right training or equipment can quickly escalate a small issue into a dangerous one. Some signs aren't just suggestions to call for help—they're giant, flashing red lights telling you to stop what you're doing and get an expert involved.
Unmistakable Signs You Need an Expert
If you run into any of these issues, your next and only move should be to call a professional team like Bear Valley Plumbing & Heating right away.
- You Smell Gas: This is the big one. That distinct rotten egg smell means a natural gas leak. Don't touch any light switches, don't unplug anything, and don't use your phone inside the house. Get everyone out immediately, and from a safe distance, call your gas company and a qualified HVAC technician.
- Loud Banging or Screeching Noises: Your furnace should be a gentle hum in the background. If you hear sudden, loud noises—banging, popping, or a high-pitched screech—it could signal a serious mechanical failure, like a problem with the blower motor.
- Visible Soot or Scorch Marks: See any black soot or burn marks around the furnace vents or on the unit itself? That’s a tell-tale sign of improper combustion, which can produce deadly carbon monoxide.
- Frequent System Lockouts: If you’re constantly resetting the furnace only to have it shut down again, that’s not a fluke. It's a sign of a deeper, persistent problem that a simple DIY fix isn't going to solve.
These symptoms go way beyond a simple ignition failure. They point to malfunctions deep within the system that require professional tools and years of experience to diagnose and fix safely.
The Risks of Advanced DIY Repairs
I get it—it's tempting to watch a video and try to save a few bucks on a bigger repair. But with furnaces, some components are strictly off-limits unless you're a licensed technician. The potential savings just aren't worth the immense risks.
Crucial Takeaway: Your furnace is a complex machine that combines high-voltage electricity, flammable gas, and toxic exhaust fumes. One wrong move can lead to gas leaks, fire, carbon monoxide poisoning, or catastrophic damage to the unit itself.
Trying to replace parts like the gas valve, the furnace control board, or the blower motor is especially dangerous. These aren't plug-and-play components; they require precise calibration and specialized knowledge. A professional diagnosis isn't just a quick look-see. We use tools like manometers to check gas pressure and combustion analyzers to make sure the furnace is burning fuel safely and efficiently. These tests are the only way to confirm a repair is done right and your home is safe.
Industry data shows ignition system failures account for 20-30% of all furnace faults. Sensitive parts like hot surface igniters often give out after 7-10 years, impacting over 50,000 homes annually in major markets like California. While cleaning a flame sensor is a manageable task for most homeowners, figuring out why it keeps failing requires an expert eye. You can dig into more data on furnace ignition system failure rates if you're curious.
The bottom line is simple: if your gas furnace fails to ignite and you've ruled out the easy stuff like a dirty filter or flame sensor, calling in a pro is the right move. It protects your family, your property, and ensures the job gets done right the first time.
Preventing Future Furnace Ignition Problems
The best furnace repair is the one you never have to make. Once you’ve sorted out an immediate issue, the smart move is to shift your focus to proactive care. This is especially true up here in Big Bear, where a reliable furnace isn't just a luxury—it’s an absolute necessity during our harsh winters.
A little bit of consistent upkeep goes a long way. It can dramatically reduce the odds of your gas furnace failing to ignite right when you need it most, saving you the stress and expense of an emergency call. More importantly, it keeps your furnace running efficiently and safely.
The Power of an Annual Professional Tune-Up
Think of an annual furnace tune-up like a wellness check for your heating system. It’s the single most effective thing you can do to head off ignition failures before they start. When a certified technician from a team like Bear Valley Plumbing & Heating comes out, they do a lot more than just glance things over.
A comprehensive tune-up is a deep dive into your system's health, and it directly addresses the most common reasons a furnace won't light.
- Cleaning Burners and Flame Sensors: A technician will meticulously clean the burner assembly for a clean, efficient flame. They’ll also clean the flame sensor, removing that pesky carbon buildup responsible for so many ignition lockouts.
- Inspecting the Igniter: The hot surface igniter gets tested for proper resistance and checked for tiny cracks or weak spots. Finding a failing igniter in the fall is a whole lot better than having it die in the middle of a January snowstorm.
- Testing Safety Controls: Every safety mechanism, from the limit switch to the pressure switches, is tested to make sure it’s working correctly. This is your guarantee that the furnace will shut down properly if a real hazard pops up.
- Checking Gas Pressure: Here at altitude, correct gas pressure is critical for clean combustion. Our techs use specialized tools to verify the pressure is calibrated perfectly for Big Bear's elevation.
Regular maintenance isn’t just about avoiding breakdowns; it's about maximizing efficiency. A well-maintained furnace can use 10-15% less energy, which translates to real savings on your utility bills all winter long.
Simple Homeowner Maintenance Checklist
Between professional visits, there are a few simple tasks every homeowner can tackle. These habits only take a few minutes but play a huge role in keeping your furnace healthy.
1. Change Your Air Filter Religiously
This one is non-negotiable. A clogged filter chokes off airflow, causing your furnace to overheat and trip its safety switches. Check your filter monthly and swap it out at least every 90 days—or even more often if you have pets or live on a dusty road.
2. Keep the Furnace Area Clear
Your furnace needs room to breathe. Don't store boxes, laundry baskets, or anything flammable within three feet of the unit. This ensures it gets proper airflow for combustion and, more importantly, prevents a serious fire hazard.
3. Test Your Carbon Monoxide Detectors
Since ignition problems can sometimes be linked to combustion issues, working carbon monoxide detectors are your critical safety net. Test them monthly and put in fresh batteries twice a year, just like you do for your smoke alarms. It’s a simple check that provides essential peace of mind.
Answering Your Questions About Furnace Ignition Problems
When your furnace quits on a cold Big Bear night, you're going to have questions. We get it. Here are some of the most common things we hear from homeowners and property managers when a gas furnace refuses to light, with answers straight from our technicians.
How Much Is This Going to Cost Me?
The cost to get your furnace firing again really depends on what’s causing the problem.
For a simple fix, like a dirty flame sensor that's causing the furnace to light up and then immediately shut down, you’re likely looking at a service call in the $150-$300 range. This is one of the most common issues we see.
If a part has failed, the price goes up. A cracked hot surface igniter is another frequent culprit, and replacing one usually costs between $250 and $450. For more serious problems, like a bad gas valve or a fried control board, the repair can get into the $500 to over $1,000 range. Don't worry, though—we always give you a clear, upfront price before we touch anything, so there are no surprises.
Does Big Bear's Altitude Really Affect My Furnace?
Yes, absolutely. This is a huge factor up here that often gets missed. The air at our elevation is thinner, meaning there's less oxygen. This messes with the critical fuel-to-air ratio your furnace needs to burn cleanly and efficiently.
Every furnace in Big Bear needs to be professionally "derated," which involves adjusting the gas pressure to compensate for the altitude. If a furnace isn't tuned for our environment, it will constantly struggle with ignition failures, create a lot of soot, and could even produce dangerous levels of carbon monoxide.
Expert Insight: We often find that recurring ignition failures in newly purchased homes are due to a furnace that was never correctly derated for Big Bear's elevation. It’s a crucial safety and performance check.
My Furnace Clicks But Never Actually Lights Up. What's Going On?
That clicking sound is actually a good sign—it means your thermostat is doing its job and telling the furnace to get to work. The furnace is trying to start its ignition sequence. That click is usually the electronic igniter attempting to spark or a relay on the control board switching on.
But if it just clicks and never roars to life, something is breaking the chain of command. The most likely suspects are:
- A dirty flame sensor that can't detect a flame, so it shuts the gas off as a safety measure.
- A faulty hot surface igniter that's cracked and just isn't getting hot enough to light the gas.
- A stuck gas valve that isn't opening to let the fuel flow to the burners.
The click tells us the brain is working, but one of the key players isn't showing up for work.
What's the Best Way to Prevent Furnace Breakdowns in My Vacation Rental?
For a vacation rental, prevention is everything. A furnace failure isn't just an inconvenience; it can torpedo a guest's entire trip, leading to bad reviews and lost income. The single best thing you can do is schedule a professional tune-up every fall, before the rental season kicks into high gear.
During a tune-up, a technician can spot and fix a weak igniter or clean a dirty sensor before it fails on a holiday weekend with guests in the house. A maintenance plan is a small price to pay for the peace of mind that your property will stay warm, safe, and ready for visitors.
If you're dealing with a furnace that just won't cooperate, don't leave it to chance. The certified pros at Bear Valley Plumbing & Heating have the local expertise to diagnose the issue correctly and get your heat back on fast. Schedule your service today.
