When your Nest thermostat starts acting up—blinking, losing power, or just plain ignoring you—nine times out of ten, the problem is lurking behind the wall. Faulty wiring is the usual suspect, with most Nest thermostat wiring issues coming down to a missing C-wire, a few crossed connections, or a simple power hiccup. Figuring out what’s going on with those tiny wires is the first step toward getting things back to normal.
Decoding Your Nest's Wiring Problems
It’s frustrating, but even a perfectly good HVAC system can be brought to its knees by one little wire connected improperly to your Nest. These smart thermostats are a lot more sensitive than the old mercury-switch models. They need a stable, continuous stream of power to keep the Wi-Fi connected, run the motion sensors, and light up that beautiful display. When the power gets shaky, you'll start seeing all sorts of confusing behavior.
The problem isn't always some complicated electrical puzzle. I've seen cases where a wire looks secure but is barely making contact, or where a heating wire was accidentally popped into the cooling terminal. These tiny mistakes are enough to stop your furnace from firing up or prevent your AC from kicking on.
Before you start pulling things apart, it helps to match the symptom to the likely cause. This quick table can point you in the right direction.
Common Nest Wiring Symptoms and Their Likely Causes
| Symptom | Most Common Wiring Cause | First Diagnostic Step |
|---|---|---|
| Thermostat is offline or has a blinking light | Missing or disconnected C-wire | Check for a C-wire at the thermostat and furnace board. |
| HVAC system turns on and off rapidly (short cycling) | Power stealing due to a missing C-wire | Visually inspect wiring for a C-wire connection. |
| Heats when it should cool (or vice versa) | W1 and Y1 wires are swapped | Check that the heating (W1) and cooling (Y1) wires are in the correct terminals. |
| No power to the thermostat at all | Loose connection or a short in the wiring | Inspect all wire connections at the Nest base and the furnace control panel. |
| "No power to Rh wire" error | The Rh wire is loose or the HVAC system's fuse is blown | Check the Rh connection and inspect the 3A or 5A fuse on your furnace's control board. |
This table isn't exhaustive, of course, but it covers the most common issues we run into in the field.

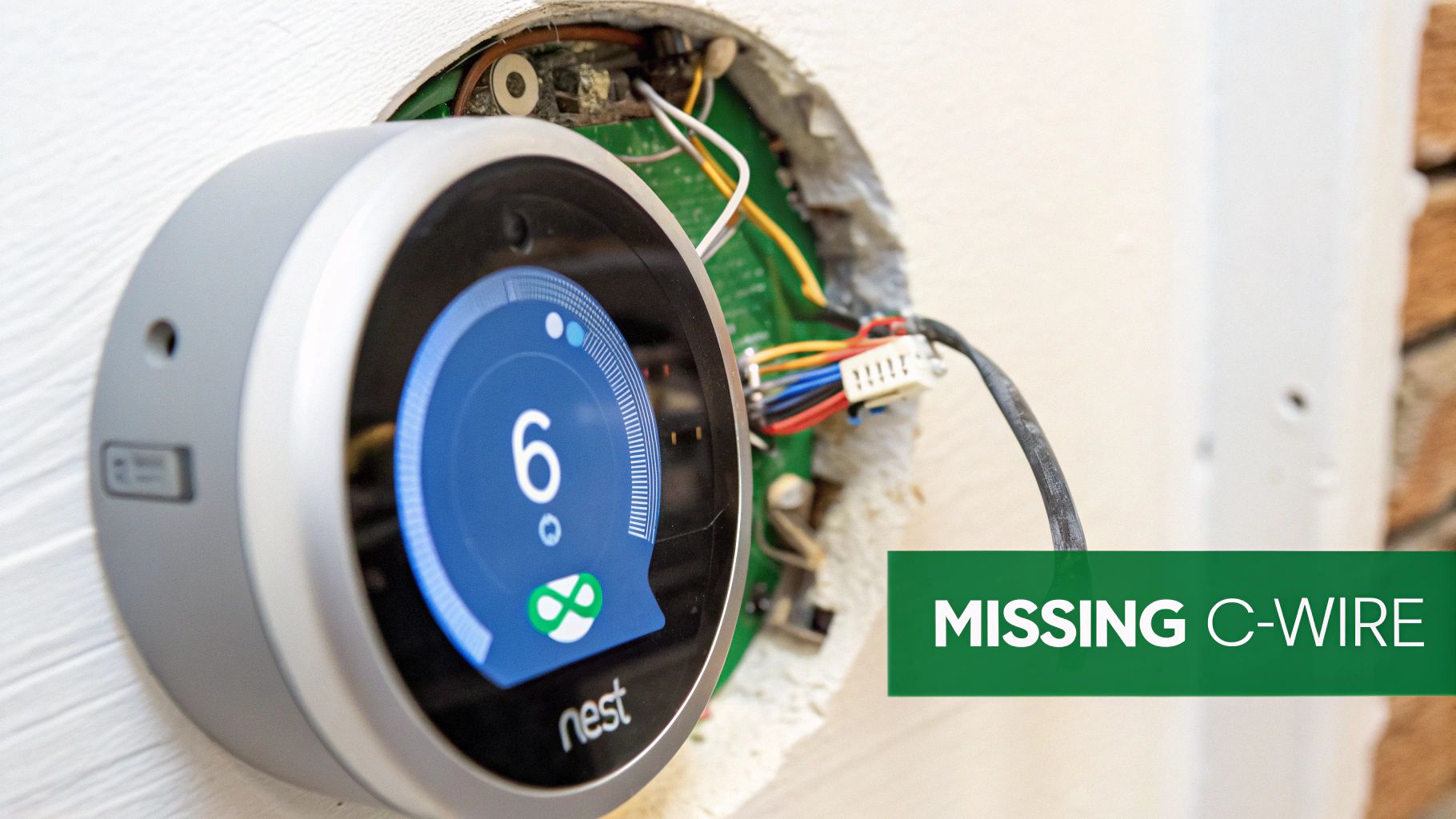

The Notorious Missing C-Wire
The number one offender in the world of Nest wiring headaches is the missing C-wire, which stands for "common wire." Old thermostats only needed to complete a circuit when they were calling for heat or cool. A Nest, on the other hand, needs power all the time. The C-wire provides a dedicated path for a steady 24VAC current directly from your HVAC system’s transformer, keeping it juiced up 24/7.
Without a C-wire, the Nest gets clever and tries something called "power stealing." It will cycle your heating or cooling system for just a few milliseconds at a time—not long enough to turn it on, but just long enough to siphon a tiny bit of electricity to charge its battery. It’s a smart workaround, but it’s far from reliable.
Key Takeaway: Power stealing often causes voltage drops that make your HVAC system short-cycle, meaning the furnace or AC kicks on for a few seconds and then shuts right back off. This is not only annoying but also puts unnecessary strain on your equipment over the long haul.
This power-stealing behavior is exactly why so many people without a C-wire end up with low-battery warnings, random reboots, or that pulsating light on the display. It's one of the most common Nest thermostat wiring issues out there. In my experience, and based on what you'll see on forums, up to 70-80% of older homes in the U.S.—especially those built before 1990 like many of the cabins here in Big Bear—don't have this crucial fifth wire in their thermostat cable. You can see just how common this is by browsing the Google Nest Community forums.
Incorrect Connections and Mismatched Wires
Beyond the C-wire, simple mix-ups can cause major headaches. Putting the heating wire (W) into the cooling terminal (Y1) will make your system do the exact opposite of what you tell it to. It happens more often than you'd think. Using the wrong type of wire can also create an unstable connection that drives you crazy.
Nest thermostats are designed for solid core, 18-gauge wires. They fit snugly into the push-in terminals. If you try to use stranded, multi-strand wire, you'll likely get a weak, intermittent connection that leads to unpredictable behavior.
A few common wiring mix-ups I see all the time include:
- Rh vs. Rc: These are the power terminals for heating (Rh) and cooling (Rc). If you have two separate transformers for your furnace and AC, these wires must go in the right spots.
- Assuming a Wire's Purpose: Just because you have an unused blue wire tucked in the wall doesn't automatically make it a C-wire. You have to pop open your furnace panel and confirm it's actually connected to the 'C' terminal on the control board.
- Dual-Fuel Systems: Wiring a heat pump that has auxiliary or emergency heat can be tricky. It often involves the O/B terminal and specific configurations that are easy to get wrong if you're not familiar with them.
Getting a handle on these foundational issues is half the battle. Before you can even think about fixing the problem, you need to know exactly what you're dealing with.
Your Diagnostic Toolkit and Safety Checklist
Before you even think about touching a single wire, let's get prepared. Diving into a wiring diagnosis without the right tools and safety measures is a surefire way to end up frustrated—or worse, with a damaged HVAC system. Think of this as your essential pre-flight check.
Now, working with low-voltage thermostat wires is generally safe, but you're still connecting a smart device to a very expensive and complex piece of machinery. The number one rule? Eliminate all risk. It’s crucial to treat this with the same respect you'd give any other electrical work in your home.
Assembling Your Essential Tools

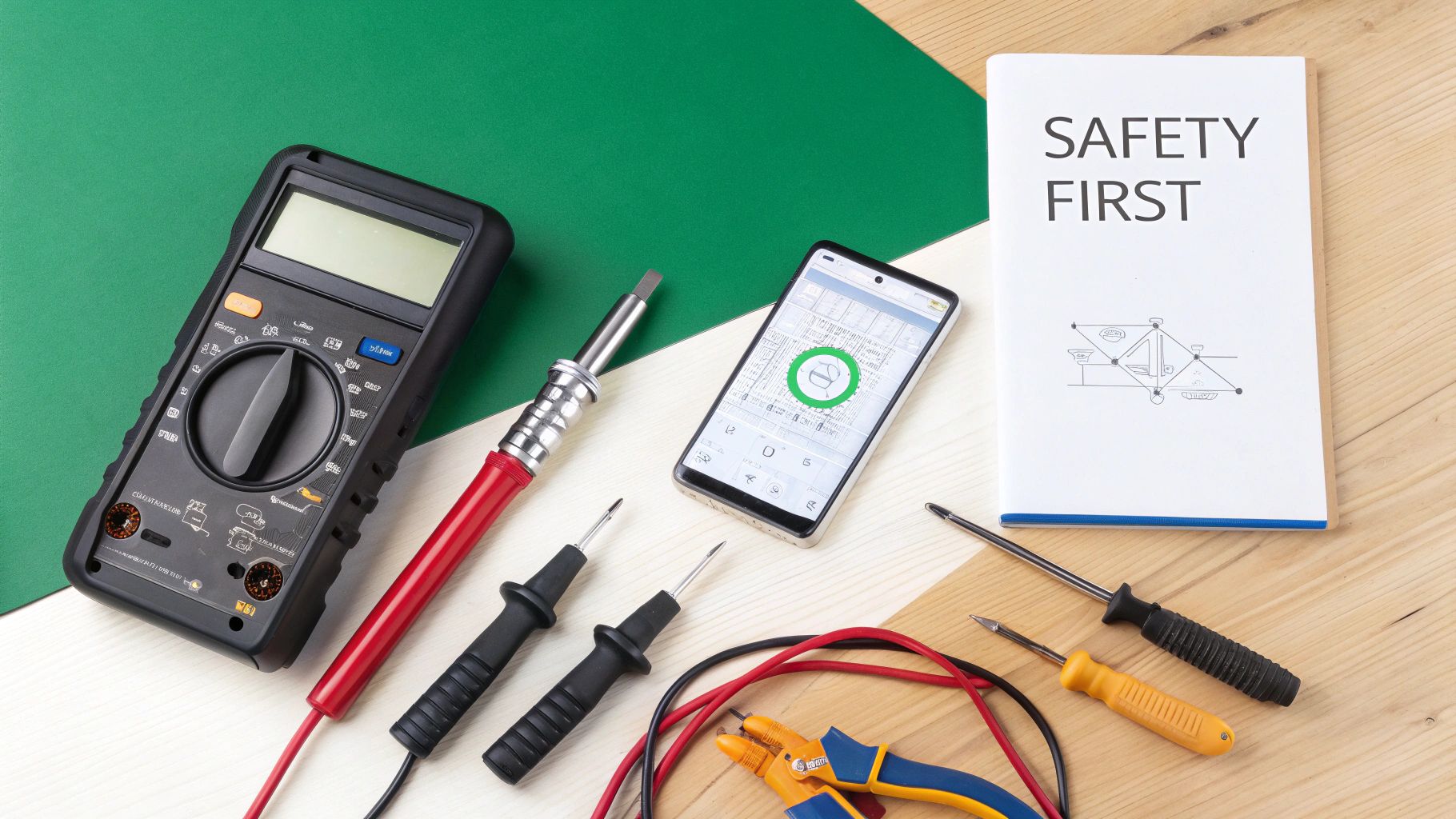

You don't need a professional's entire van, but a few key items are non-negotiable for accurately diagnosing Nest thermostat wiring issues. Having these ready will save you from stopping halfway through to run to the hardware store.
Here's what you'll want in your toolkit:
- A Reliable Multimeter: This is your most critical diagnostic tool. It’s the only way to know for sure if your HVAC system is sending the correct voltage to your Nest. A basic digital multimeter that measures AC voltage is perfect.
- A Good Screwdriver Set: You'll likely need a small flathead and a Phillips head for removing the thermostat's base plate and maybe the access panel on your furnace or air handler.
- Wire Strippers/Cutters: These are invaluable if you find a frayed wire that needs a clean connection or if you're repurposing an unused wire to act as a C-wire.
- Your Smartphone: Don't underestimate this one. A clear photo of your original wiring is the best insurance policy you have.
Pro Tip: Before you disconnect a single wire, take a high-resolution photo looking straight at the wiring terminal. Then, snap another one from the side. This simple act has saved countless DIYers from a major headache.
The Unskippable Safety Checklist
Safety isn't just a suggestion; it’s a hard requirement. Blowing past these steps can lead to blown fuses, a fried furnace control board, or worse. The goal is simple: completely cut the power to your HVAC system so you have a safe environment to work in.
- Find Your Breaker Box: Head to your home's main electrical panel. The breaker for your HVAC system should be labeled "Furnace," "Air Handler," "AC," or something similar. Sometimes you'll find separate breakers for the indoor and outdoor units.
- Kill All HVAC Power: Flip the correct breaker (or breakers) to the OFF position. If the panel is poorly labeled and you're not 100% sure which one it is, it’s safest to turn off the main breaker, though this is rarely necessary.
- Confirm the Power Is Off: The easiest check is right at the thermostat. Try to adjust the temperature or wake the screen. If it's completely blank and unresponsive, you've successfully cut the power. This is a critical step for any safe and effective smart thermostat installation.
- Look for an Internal Switch: Many furnaces and air handlers have a light-switch-style power switch on the unit itself or on a nearby wall. Make sure this is also flipped to OFF for a second layer of safety.
Once you’ve gathered your tools and run through this safety protocol, you’re ready to get hands-on. You've created a secure workspace, which gives you the confidence to investigate the wiring without worrying about accidental shorts or electrical hazards. Now you can focus on finding the real root of the problem.
A Practical Guide to Diagnosing Wiring Faults
With your tools ready and the power safely shut off, it's time to play detective. Tracking down Nest thermostat wiring issues is really just a methodical process of elimination. More often than not, it starts with a simple visual check that can pinpoint the problem in minutes, long before you ever need to break out a multimeter.
Let's start where the trouble usually shows up: the thermostat itself. Carefully pop the Nest display off its baseplate. You're looking for the small details that make a big difference. Are all the wires seated firmly in their terminals? A wire that looks secure but wiggles loose with a gentle tug is a classic culprit for intermittent power loss.
Next, give the wires themselves a close look. Is the exposed copper shiny and clean, or is it dull and corroded? Pay special attention to the plastic insulation. Any nicks, cracks, or frayed sections could be causing a short circuit, where two wires touch and scramble the electrical signals. This is a common cause of bizarre behavior, like your A/C kicking on at the same time as your heat.
Expanding Your Visual Inspection to the Furnace
Your investigation doesn't stop at the wall. The other end of that thermostat cable connects to your furnace or air handler's main control board, and problems are just as likely to hide there. Head over to your HVAC unit, remove the service panel (it's usually in the lower section), and find the control board.
Once again, start with the basics. Compare the wiring here to the photo you took of your Nest's baseplate. Does every wire match up? The wire in the W terminal at the Nest must go to the W terminal here. Y should go to Y, G to G, and so on. Any mismatch is a guaranteed problem.
While you're there, check the wire gauge. This is a huge—and often overlooked—headache for Nest users. Nest requires 18-22 AWG solid copper wires for a solid connection, but we often see installations where someone used thinner 24 AWG network cabling as a shortcut. A February 2025 Google Nest Community post highlighted a classic case where this exact issue on a forced-air gas furnace led to compatibility errors and failed heat tests, even though the voltage readings seemed fine. You can find plenty of similar stories on various HVAC and smart home forums.
Using Your Multimeter to Uncover Power Problems
If a visual once-over doesn't turn up anything obvious, it's time to see if your Nest is even getting the power it needs. This is where your multimeter becomes your best friend. For this test, you'll need to turn the power to your HVAC system back on at the breaker. Be extremely careful not to touch any wires or terminals with your hands from this point on.
Your goal is to measure the AC voltage between the power wires right at the Nest base. Follow these steps carefully:
- Set your multimeter to measure AC voltage (look for the V~ or VAC setting).
- Gently touch the red probe to the screw on the R terminal (this could be Rh or Rc).
- At the same time, touch the black probe to the screw on the C terminal.
You're looking for a reading between 24VAC and 29VAC. This is the healthy voltage range that tells you the HVAC transformer is doing its job and sending enough power up to the thermostat.
Real-World Scenario: If your multimeter shows a steady 27.5VAC, your power supply is solid. But if that reading is down below 20VAC or bouncing all over the place, you've got a power delivery problem. It could be a failing transformer, a loose connection you missed, or a partial short somewhere in the wire run.
A low or zero voltage reading is a dead giveaway that the problem lies with the HVAC system's power output, not the Nest itself. For situations where a smart thermostat won't power on at all, our guide on what to do when a Honeywell thermostat isn't turning on has some related troubleshooting steps you might find useful.
Interpreting Your Diagnostic Findings
After running through your visual and electrical checks, you can start connecting the dots. Your findings will almost always point to one of a few common scenarios.
- You found loose or frayed wires. This is the best-case scenario. The fix is easy: just snip off the damaged end, strip a fresh quarter-inch of insulation, and lock the wire back into its terminal.
- The wires at the furnace were mismatched. Reconnecting the wires to their proper terminals should solve the problem instantly. Always double-check your work against your "before" photos to be sure.
- The voltage reading was healthy (24-29VAC). If the power is good but the Nest is still on the fritz, the issue could be a faulty thermostat baseplate or an internal problem with the Nest unit itself.
- The voltage reading was low or non-existent (<20VAC). This points to a deeper electrical problem. The culprit is likely your furnace's control board, a blown fuse on the board, or the 24VAC transformer. These are more complex repairs that usually require a professional's touch.
By methodically ruling out the simple stuff first, you can confidently figure out if you're dealing with a quick fix or a more serious power issue that needs an expert.
Actionable Solutions for Common Wiring Headaches
Once you’ve figured out why your Nest is acting up, it’s time to get your hands dirty and fix it. Moving from diagnosis to repair can feel a bit daunting, but most wiring problems have surprisingly simple solutions. Whether you’re missing that crucial C-wire, dealing with a loose connection, or navigating a complex HVAC system, a steady, methodical approach will get you there.
This section breaks down the fixes for the most common wiring headaches I see in the field. We’ll start with the biggest culprit of them all—the missing C-wire—and walk through the best ways to give your Nest the stable power it needs.
Solving the Persistent No C-Wire Problem
The missing C-wire is the villain in so many Nest installation stories. Without a dedicated power source, your thermostat has to "power steal," a clever but often unreliable trick that leads to short cycling, a perpetually dying battery, and all sorts of performance glitches. Thankfully, you have a few solid options to fix this for good.
The Nest Power Connector is usually the easiest route. It's a small adapter you install right at your furnace control board. It cleverly uses your existing thermostat wires to simulate a C-wire connection without the hassle of running new cables through your walls. For most people, installation is a quick job that just involves connecting a few wires at the furnace panel by following the included guide.
Another fantastic option is to hunt for an unused wire in your current thermostat cable. Installers often ran cables with five or more wires, even if the old thermostat only needed four. You might have a solution hiding right in the wall.
- Look Behind the Thermostat: Gently pull the thermostat cable out from the wall. Are there any extra, unused wires tucked back there? The spare is often blue, but not always.
- Check at the Furnace: Now, head over to your furnace control board. Is that same unused wire present there, too?
- Make the Connection: If you found a spare wire at both ends, you're in luck. Just connect it to the 'C' terminal on your furnace board and the 'C' terminal on your Nest baseplate. This creates a true, dedicated C-wire—the most reliable fix you can get.

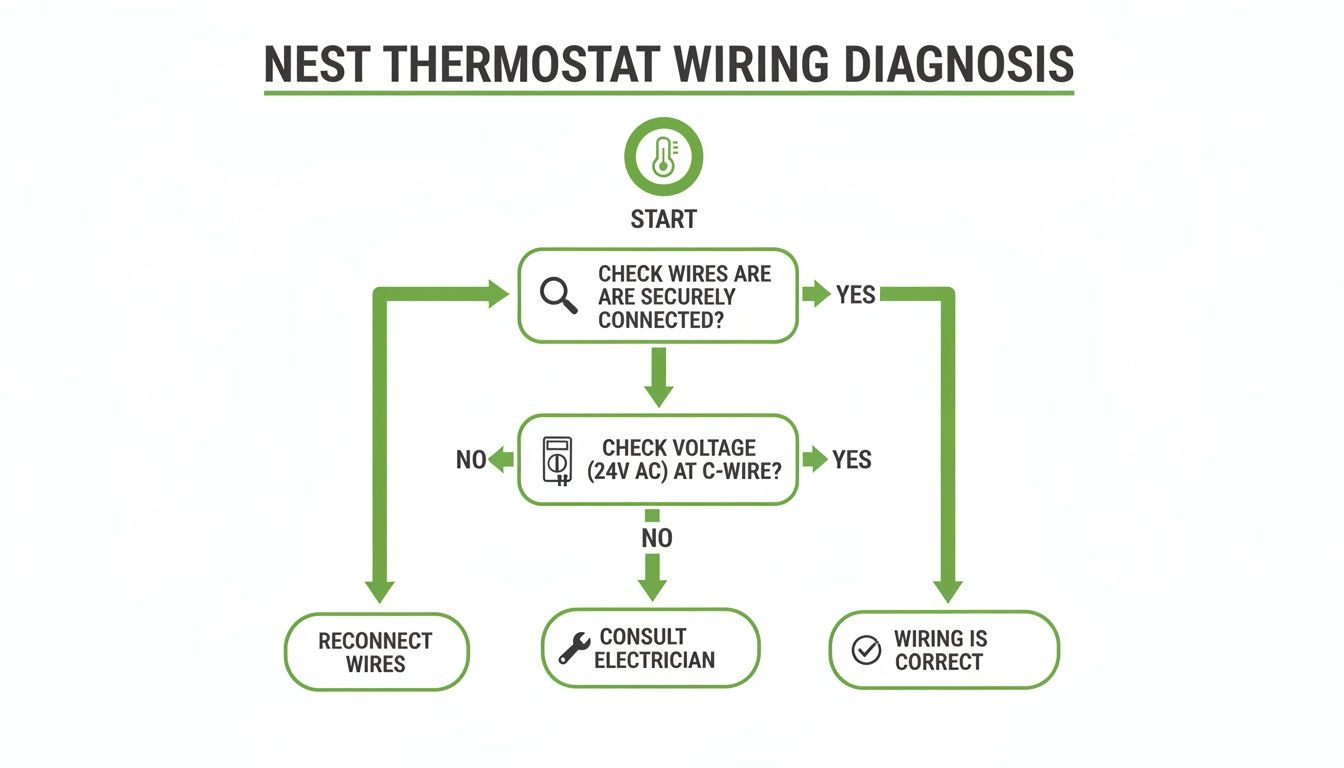

This flowchart gives you a simple visual guide for tracking down these kinds of power-related issues.
As the chart shows, a systematic check—starting with the physical wires and then moving to voltage tests if needed—is the fastest way to pinpoint what’s going wrong.
Deciding on the best way to solve the C-wire problem depends on your setup and comfort level with DIY projects. This table breaks down the most common solutions to help you choose.
Choosing Your C-Wire Solution
| Solution | Best For | DIY Difficulty | Estimated Cost |
|---|---|---|---|
| Use a Spare Wire | Homes with an extra, unused wire in the existing thermostat cable. This is the most permanent and reliable fix. | Easy | $0 (if wire is present) |
| Nest Power Connector | Homes without a spare wire where you want to avoid running new cable through the walls. | Easy to Moderate | $25 – $35 |
| Run a New Wire | A permanent solution for any home, but requires fishing new cable from the furnace to the thermostat. | Difficult | $20 – $50 (DIY) or $150+ (Professional) |
Ultimately, using a spare wire is the gold standard if you have one. If not, the Nest Power Connector offers a great balance of reliability and ease of installation.
Ensuring a Rock-Solid Physical Connection
Sometimes the fix is much simpler than adding new parts. A wire that's poorly seated, frayed, or stripped incorrectly can cause just as much trouble as a missing one. For your Nest to work reliably, every physical connection has to be perfect.
First, check the wire ends. Each wire should have about 3/8 of an inch of exposed copper. Too little, and it won’t make solid contact inside the terminal. Too much, and you’re risking a short circuit if it brushes against a neighboring wire. A good pair of wire strippers will give you a clean cut without damaging the copper.
Next, push the wire firmly into its terminal until you feel it lock in. Give each one a gentle tug afterward—it should be snug and not pull out. If a wire tip looks bent or damaged from being reconnected multiple times, it’s best to snip off the worn end and strip a fresh section.
Expert Insight: Voltage instability and missing power sources plague Nest Thermostats in 35% of reported failures, often tied to no C-wire. This is especially critical in places like Big Bear, where consistent heat is a necessity during heavy snowfall. Research confirms Nest's power-stealing technique only works reliably in about half of all setups, pushing many users toward C-wire solutions. Learn more about Nest's power requirements and troubleshooting on their support page.
Addressing Complex System Wiring
If your home has a more advanced HVAC system—like a multi-stage furnace or a dual-fuel heat pump—the wiring gets a lot more specific. A simple mix-up here won’t just cause poor performance; it can keep expensive equipment from running properly or even cause damage.
Here are a few key terminals you need to get right on these systems:
- W2/Y2: These are for the second stage of your heating or cooling. If your system is two-stage but you only connect W1 and Y1, you're not getting the full efficiency and power you paid for.
- O/B: This one is crucial for heat pumps. It controls the reversing valve that tells the system whether to produce hot or cold air.
- * (Star): This is a multi-function terminal that can be used for emergency heat (E), auxiliary heat (AUX), or even a whole-home humidifier. Configuring it correctly in the Nest app is just as important as plugging in the wire.
When you're dealing with these systems, your HVAC unit's manual is your best friend. Follow it and the Nest's pro installation guide to the letter. Miswiring an O/B terminal, for instance, could leave you with a heat pump blowing cold air in the middle of winter. If you have any doubt at all, this is a clear sign it's time to call in a certified pro from Bear Valley Plumbing & Heating to get it configured safely and correctly.
Knowing When to Call a Professional
Tackling a DIY project can be incredibly satisfying, but when it comes to HVAC and electrical systems, knowing your limits is the smartest move you can make. While many Nest thermostat wiring issues are simple fixes you can handle yourself, some red flags point to a deeper problem that really needs an expert eye.
Recognizing these signs will save you time, prevent costly damage, and most importantly, keep your family safe.
Sometimes, the problem isn't just a loose wire; it's a symptom of a more serious failure inside your HVAC system. If you’ve double-checked your connections and tried the common fixes but the issue just won't quit, it’s time to pause. Persistent error codes that refuse to clear are your Nest’s way of screaming that something is fundamentally wrong with the power it’s receiving or the signals it’s sending.
Clear Signs It’s Time for an Expert
Certain situations quickly move beyond a simple DIY fix and straight into professional territory. If you run into any of the following, your very next step should be calling a licensed technician.
- Visible Sparks or Burning Smells: This one is non-negotiable. Any spark from a wire or a plastic or electrical burning smell coming from your furnace is an immediate stop sign. Shut off the power at the breaker right away and call for help.
- Buzzing or Clicking from the Furnace: A loud, continuous buzzing sound from your furnace control board often indicates a failing transformer or a stuck relay. These are components that are unsafe to handle without proper training and tools.
- Complex HVAC Systems: If you have a zoned system, a dual-fuel heat pump, or a boiler, the wiring is far more intricate than a standard setup. One small mistake here can throw off the efficiency of your entire system.
When you hire a certified professional, you’re not just paying for a repair; you’re investing in peace of mind. A seasoned technician from Bear Valley Plumbing & Heating has the diagnostic tools to safely test transformers and control boards, and they’ve seen hundreds of unique wiring puzzles.
The Value of Professional Expertise
An experienced HVAC pro brings tools and knowledge that go far beyond a simple multimeter. They can quickly figure out if the problem is a faulty thermostat or a failing component buried inside your furnace. For instance, if your Nest battery keeps draining despite having a C-wire, a technician can test the 24VAC transformer to see if it’s providing weak voltage—a classic issue in older units.
They can also spot problems that aren't obvious at first glance. A perfect example is a clogged condensate drain line tripping a safety switch, which then cuts power to your thermostat. It looks exactly like a wiring problem, but it’s actually a mechanical one. If you're not sure what you're dealing with, you can find more information about how to tell if your thermostat needs to be replaced in our related guide.
Ultimately, if you feel uncomfortable at any point while working with electrical components, that’s your cue to stop. Your HVAC system is one of the most expensive appliances in your home. A professional service call is a small price to pay to ensure it’s wired correctly, operates safely, and continues to keep your home comfortable for years to come.
Frequently Asked Questions About Nest Wiring
Even after you’ve run through all the diagnostics, a few tricky questions about specific errors or odd wiring setups can pop up. It's perfectly normal. Over the years, we've found that most homeowners get stuck on the same handful of confusing scenarios when sorting out their Nest thermostat. Let’s clear up the most common ones.
These issues might seem complicated on the surface, but they almost always point back to a few specific causes you can pinpoint with a little targeted troubleshooting.
What Does a "No Power to Rh Wire" Error Mean?
Seeing a "No power to Rh wire" error is definitely concerning, but it rarely means your thermostat is dead. Think of this message as your Nest’s way of saying it's not getting the 24VAC power it needs from your HVAC system’s heating transformer. The problem almost always starts at the furnace, not with the thermostat itself.
This power cutoff is usually triggered by a safety feature in your HVAC unit.
- A Tripped Safety Switch: Most furnaces have a high-limit switch that kills the power if the unit starts to overheat. Air conditioners have a similar feature—a condensate overflow switch in the drain pan shuts everything down if water backs up, which is a smart way to prevent a flood.
- A Blown Fuse: Your furnace's control board is protected by a small, automotive-style fuse (usually 3 or 5 amps). If that little fuse blows, all power to the thermostat gets cut off instantly.
Before you assume the worst, start with the simple stuff. First, double-check that the breaker for your furnace is on. Then, pop open the furnace access panel and look for that small fuse on the control board. If a safety switch was tripped, you'll need to fix the root cause, like clearing a clogged AC drain line, before power is restored.
Can I Use a Spare Wire for the C-Wire?
Absolutely—and if you have one, it’s the best possible fix. Many older thermostat cables were installed with more wires than the simple thermostats of the day actually needed. Finding and activating one of these spares is the gold standard for fixing C-wire-related Nest thermostat wiring issues because it gives you that direct, stable power connection.
The process is pretty straightforward, but you have to check both ends of the wire. Start at the thermostat. Gently pull the wire bundle a little further out of the wall and look for any wires that aren't connected to a terminal. A stray blue or black wire is a common find.
Important Tip: The wire has to be unused at both ends. Just because it’s disconnected behind your Nest doesn't mean it isn’t connected to something down at the furnace.
Once you’ve found a spare wire, head to your furnace and shut off the power. Open the service panel and find where that same thermostat cable connects to the control board. Locate that same-colored wire and make sure it’s not connected to anything. If it’s free, just connect it to the terminal labeled ‘C’ or ‘Common’. Now, head back to your Nest and connect the other end to the ‘C’ terminal on the baseplate. That's it—you've just created a true C-wire connection.
Why Is My Nest Battery Draining With a C-Wire?
This one is incredibly frustrating because you did everything right. You connected a C-wire, which should have solved any power problems for good. If your Nest’s battery is still draining, it means that even though the wire is physically connected, a reliable 24VAC current isn't actually making it to the thermostat. The problem is somewhere in the power delivery chain.
A few culprits could be at play here. The 24VAC transformer in your furnace could be on its last legs, providing weak or intermittent voltage. You could also have a tiny, almost invisible break somewhere along the C-wire's path inside the wall. Even a loose or corroded connection at the furnace control board can be enough to disrupt the power flow.
The only way to know for sure is to test the voltage right where it matters: at the Nest itself. Grab a multimeter and measure the AC voltage between the R and C terminals on the Nest baseplate. If that reading is dipping below 20-22VAC or jumping all over the place, the power isn't stable enough. A low voltage reading is a clear sign the problem lies with your HVAC system’s electricals, and that’s a definitive signal to call in a professional for a deeper diagnosis.
If you're facing persistent Nest wiring problems or just want the peace of mind that comes with an expert installation, Bear Valley Plumbing & Heating is here to help. Our certified technicians have the tools and experience to solve any wiring puzzle safely and efficiently. Contact us today for reliable, professional service. https://www.584hero.com
